Interpolation
The Interpolation layer suits data sets that have their data points spread out in an inconsistent way.
It is designed to interpolate between the data data points using gradients to best fit
the data in between the spatial values. It groups the data into grids, the grid size can be set to auto or
you can set a specific grid size that best represents the data set. You can set the type of
aggregation used for all the values in each grid. The aggregation options are minimum, maximum, average and
sum. You can assign multiple aggregation functions to the dataset's value which will be
represented as separate layers.
You can alter the colors used to represent each color band that is used to comprise the Interpolation layer.
Every time the layer is displayed the minimum and maximum grid values are calculated based on all the data that
is present in the displayed map. Eleven color bands are used to represent the lowest value, the 10% spread, the
20% spread, all the way up to the maximum value which is 100% which is the grid with the largest aggregated value.
When the Interpolation layer is displayed a legend is also displayed showing the color bands and the values that are
presently assigned to those color bands. Every time the layer is displayed these color bands are recalculated
based on the minimum and maximum grid values that are present in the current map's bounding box.
The interpolation layer also supports animation between two interpolation layers and you can also specify the animation
duration.
|
Symbolgy
The Interpolation symbology can be be altered either:
- In the Viewer when viewing the layer where the symbology changes will stay in effect only until the
layer tree is reloaded.
- In the Manager when adding or updating the dataset. These changes will stay in effect indefinitely until the symbology is
again updated.

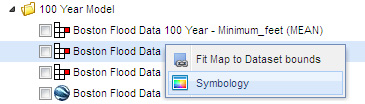

In the Viewer you can temporarily change the Interpolation layer symbology in the Viewer by right clicking the layer in the layer tree
and selecting symbology from the menu.
Or you can click the Symbology button while the layer is selected in the layer tree. Selection in the layer tree means the
item in the tree has been clicked and is highlighted it does not mean that the item has its checkbox ticked.
In the Manager you can change the layer's symbology by editing it's symbology panel
in the Symbology tab. These changes will stay in effect until the symbology is again updated
Color Bands
You can change the colors used to represent each color band that is used to render the Interpolation layer.
When the layer is displayed the minimum and maximum aggregated grid values are calculated based on all the data that
is present in the displayed map. Each grid is assigned a number between 0 and 100 and the color assigned to the grid will be
its position relative to the color bands that it lies between. Eleven color bands are used to represent the lowest value 0,
the 0-10 spread (Color Band 1), the 10-20 spread (Color Band 2) all the way up to the maximum value which is 100 (Color Band 11)
which is the grid with the largest aggregated value.
You can click the select button to popup a color picker (shown below) to help choose your desired color.
Grid Size
You can set the grid size to a fixed value to be used when the layer is rendered. A grid size of 50 means the data will
be arranged in to a 50x50 grid. Where data is more spaced out you may want to lower the grid size to help ensure the
layer gets enough coverage to reduce gaps. Selecting auto will automatically set a grid size based on the size of the map.
Animation Duration
The Interpolation layer is supported by the Animation Generator to create
animations between two Interpolation layers. You can specify the animation duration.
Once the animation has completed it starts again from the beginning.
Legend
When the Interpolation layer is displayed a legend is also displayed showing the color bands and the values that are
presently assigned to those color bands.

|
