Symbology

In the Viewer you can dynamically set the Symbology to be used to display the various layers.

You can set a layer's symbology by selecting it in the layer tree and either clicking the Symbology button.

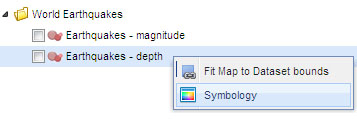

Or by right clicking the layer and selecting Symbology from the tree menu.

Layer Symbology defines the way that the layer types will be rendered in your viewer map portal. Each layer type has various settings that you can change to suit your preference over how the layer will be rendered.

Interpolation Symbology

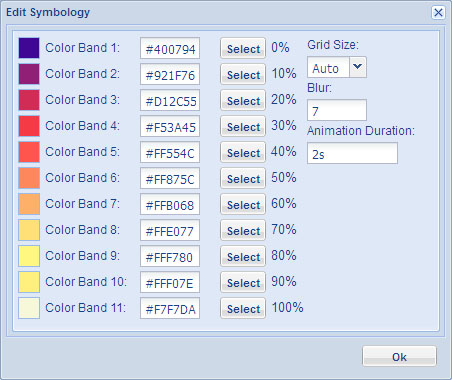

Color Bands

You can change the colors used to represent each color band that is used to render the Interpolation layer.

When the layer is displayed the minimum and maximum aggregated grid values are calculated based on all the data that is present in the displayed map. Each grid is assigned a number between 0 and 100 and the color assigned to the grid will be its position relative to the color bands that it lies between. Eleven color bands are used to represent the lowest value 0, the 0-10 spread (Color Band 1), the 10-20 spread (Color Band 2) all the way up to the maximum value which is 100 (Color Band 11) which is the grid with the largest aggregated value.

You can click the select button to popup a color picker (shown below) to help choose your desired color.

Grid Size

You can set the grid size to a fixed value to be used when the layer is rendered. A grid size of 50 means the data will be arranged in to a 50x50 grid. Where data is more spaced out you may want to lower the grid size to help ensure the layer gets enough coverage to reduce gaps. Selecting auto will automatically set a grid size based on the size of the map.

Animation Duration

The Raster Grid layer is supported by the Animation Generator between two Raster Grid layers. You can specify the animation duration. Once the animation has completed it starts again from the beginning.

Raster Grid Symbology

Color Bands

You can change the colors used to represent each color band that is used to render the Raster Grid layer.

When the layer is displayed the minimum and maximum aggregated grid values are calculated based on all the data that is present in the displayed map. Each grid is assigned a number between 0 and 100 and the color assigned to the grid will be its position relative to the color bands that it lies between. Eleven color bands are used to represent the lowest value 0, the 0-10 spread (Color Band 1), the 10-20 spread (Color Band 2) all the way up to the maximum value which is 100 (Color Band 11) which is the grid with the largest aggregated value.

Grid Size

You can set the grid size to a fixed value to be used when the layer is rendered. A grid size of 50 means the data will be arranged in to a 50x50 grid. Where data is more spaced out you may want to lower the grid size to help ensure the layer gets enough coverage to reduce gaps. Selecting auto will automatically set a grid size based on the size of the map.

Blur

A blur is used to smooth the gradient's transition between the neighboring grid cells, the blur value can be set in the symbology settings.

The following screenshot shows the Boston flood model layer with blue color bands with a blur setting of 7:

The following screenshot shows the same Boston flood model layer with the blur value set to 0:

Animation Duration

The Raster Grid layer is supported by the Animation Generator between two Raster Grid layers. You can specify the animation duration. Once the animation has completed it starts again from the beginning.

Multi Geometry Symbology

The symbology of the MultiGeometry layers can be altered in the Google Fusion Table application. The MultiGeometry symbology settings provides a link in the Metadata View to navigate to the Google Fusion Table application.

Once there you can navigate to:

Visualize > Map > Configure Styles

To change how the MultiGeometry layer's points, lines and polygons are displayed.

Density Symbology

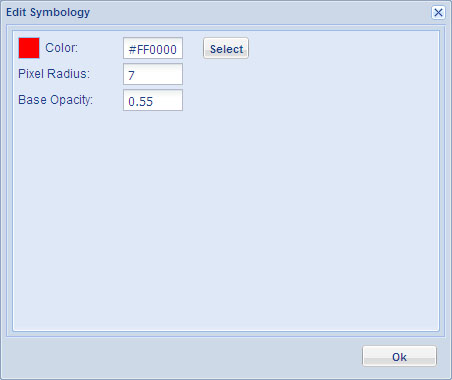

You can set the radius of the density plot and the base opacity to suit the data and the color in the symbology settings.

Circle Symbology

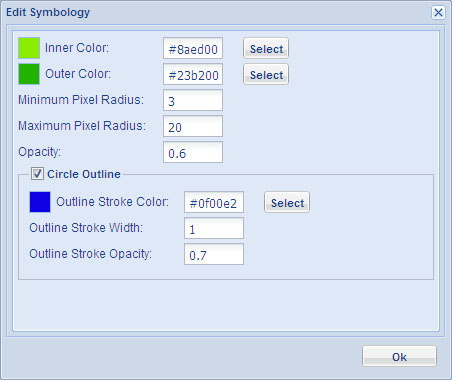

You can set both the inner and outer color to represent the circle layer. If you do not want a color gradient in the circle you can set both colors to the same value and no gradient will be used. You can also specify the minimum and maximum pixel radius of the circle layer. The values that are being displayed on the Maps bounding box will use these minimum and maximum values to size the circles based on the individual plot values. You can also invert the maximum and minimum values so that the minimum radius is greater than the maximum radius which will cause plots with higher values to be smaller circles.

You can set the base opacity for the circle layer to make the circles more transparent.

You can either specify an outline or no outline by clicking the Circle Outline checkbox. If this checkbox is selected the symbology options for the outline will be shown. Here you can set the stroke width, opacity and color for the circle outline.
